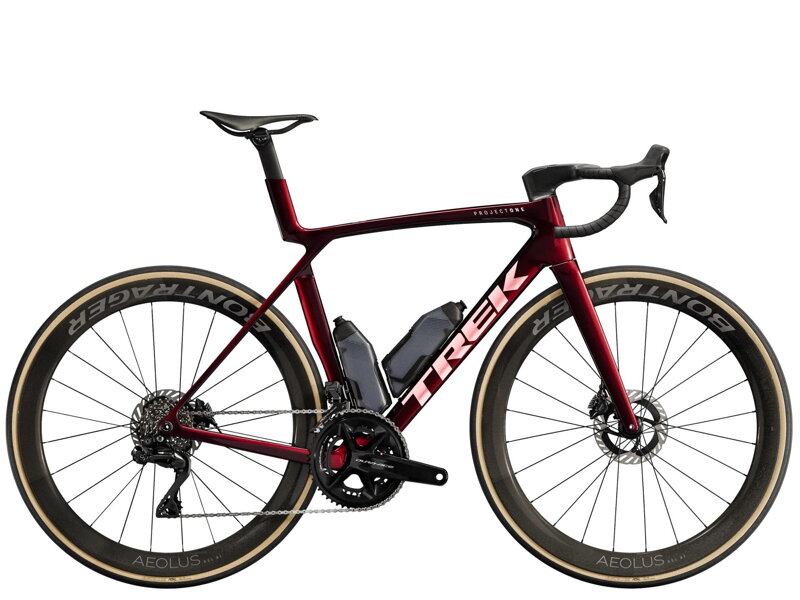

The ultra-light and aerodynamic Madone SLR 9 Gen 8 is built to dominate the road with speed.
It's made with our highest-quality 900 Series OCLV Carbon, which is incredibly light while giving the bike an aerodynamic shape for a masterful descent and straightaway.
A lightweight frame with IsoFlow technology ensures that Madone doesn't sacrifice comfort for speed. Top-of-the-line Shimano Dura-Ace Di2 shifting, carbon wheels, an integrated carbon handlebar with a Trek Aero RSL stem, and RSL Aero water bottles and bottle cages for even lower drag will put this bike on the podium.
This is for you if...
You ride, sleep, and live for racing and want the best road race bike we've ever made. You're looking for the triple-whammy of aerodynamics, comfort, and lightness in one bike. You're willing to pay extra for the important stuff, like our highest-quality carbon laminate, top-spec components, and just about any detail that gives you an edge on race day.
The Tech You Get
An incredibly lightweight frame made from our highest-quality 900 Series OCLV Carbon with aerodynamic tube shaping, IsoFlow for comfort, and RSL Aero water bottle and bottle cage mounts to save you extra watts. Shimano's top-of-the-line Dura-Ace Di2 road-grade shifting delivers lightning-fast gear changes and is configurable. Universal derailleur hanger so you can swap it anywhere. It also features Bontrager Aeolus RSL 51 tubeless carbon wheels and an integrated handlebar with a Trek Aero RSL stem.
The Final Word
Madone SLR 9 Gen 8 is our lightest, most aerodynamic, and most powerful Madone, ready to deliver superbike-worthy performance at all times. It features an ultra-light 900 Series OCLV Carbon frame for lightning-fast climbs, aerodynamic tube shaping for air-splitting descents, and IsoFlow technology to keep you comfortable the whole way. It's packed with top-notch components and doesn't compromise.
- The revolutionary Full System Foil tube shaping redefines what speed looks like and helps optimize the aerodynamics of the entire bike.
- It's made from our highest-quality 900 Series OCLV Carbon, which is incredibly light yet stiff where you need it and supple where you want it.
- Carbon wheels are super light and deliver more performance so you can effortlessly tackle climbs and fast descents.
- You get the lightest and fastest Shimano Dura-Ace Di2 shifting.
- RSL Aero water bottles and bottle cages help increase speed and improve the bike's aerodynamics.
- The new Blendr system on the handlebars and stem makes it easy to install and remove a daytime running light.
More from category
Additional information
| Category: | Road & Gravel |
| Odpruženie: | Bez odpruženia |
| Určenie: | Unisex |
| Veľkosť: | XS |
| Veľkosť kolies: | 700 |
Need Help?
| Rám a vidlica | |
|---|---|
| Rám | Rám z karbónu OCLV radu 900, tvarovanie rúrok Full System Foil, systém IsoFlow na sedlovej rúrke, systém RCS Headset System, vedenie káblov výlučne elektronického radenia, odnímateľný aerodynamický držiak reťaze, stredové zloženie T47, kotúčové brzdy s uchytením typu Flat Mount, UDH, pevná os 142 × 12 mm |
| Vidlica | Jednodielny karbónový kokpit Madone Gen 8, kónické karbónové riadenie, interné vedenie lanka brzdy, uchytenie kotúčov typu flat mount, skosená pevná os 12 x 100 mm |
| Hmotnosť | |
| Hmotnosť | ML - 7.05 kg / 15.55 lbs (s tmelom TLR, bez duší, bez fliaš na vodu/bez držiakov na fľaše) |
| Hmotnostný limit | Maximálna systémová hmotnosť bicykla (kombinovaná hmotnosť bicykla, jazdca a nákladu) je 125 kg (275 lb) |
| Elektrický pohon | |
| Batéria | Shimano BT-DN300 |
| Nabíjačka | Nabíjací kábel je súčasťou balenia |
| Pohon | |
| Radiaca páčka | Shimano Dura-Ace R9270 Di2, 12-rýchlostné |
| Predná prehadzovačka | Shimano Dura-Ace R9250 Di2, spájkované, kolísanie nadol |
| Zadná prehadzovačka | Shimano Dura-Ace R9250 Di2, max. ozubenie 34T |
| Kľuky | XS, S: 165 mm M: 170 mm ML, L: 172,5 mm XL: 175 mm Všetky: Shimano Dura-Ace R9200, 52/36 |
| Stredové zloženie | Praxis, závitové T47, vnútorné ložisko |
| Kazeta | Shimano Dura-Ace R9200, 11-30, 12 prevodov |
| Reťaz | Shimano Dura-Ace/XTR M9100, 12-rýchlostné |
| Max. veľkosť prevodníka | 1×: 54T, 2×: 56/43 |
| Zapletené kolesá a plášte | |
| Predné koleso | Bontrager Aeolus RSL 51, karbón OCLV, bezdušové, 51 mm, pevná os 100x12 mm |
| Zadné koleso | Bontrager Aeolus RSL 51, karbón OCLV, bezdušové, 51 mm, Shimano 11/12, pevná os 142x12 mm |
| Predná ihlica | Skosená pevná os Bontrager Switch, odnímateľná páčka |
| Zadná oska | Skosená pevná os Bontrager Switch, odnímateľná páčka |
| Plášte | Bontrager Aeolus RSL RD, 700 x 28 mm, bezdušové Pirelli P Zero Race, 700 x 28 mm, 120 tpi, bezdušové |
| Tmel | Bontrager TLR, 6 oz |
| Max. veľkosť plášťa | 32 mm (namerané, viac v návode) |
| Komponenty | |
| Sedlo | XS, S: Aeolus RSL, karbónové lyžiny, šírka 155 mm M, ML, L, XL: Aeolus RSL, šírka 145 mm |
| Sedlovka | XS, S, M, XL: Krátka karbónová aero sedlovka Madone ML, L: Dlhá verzia |
| Riadidlá / predstavce | XS: 35 / 38 cm, predstavce 80 mm S: 37 / 40 cm, 90 mm M: 39 / 42 cm, 90 mm ML, L: 39 / 42 cm, 100 mm XL: 41 / 44 cm, 110 mm |
| Omotávka | Trek EcoTack |
| Veľkosť brzdového kotúča | Max: 180 mm predný, 160 mm zadný |
Všetky rozmery sú uvedené v cm, ak nie je uvedené inak.
| Veľkosť rámu | Veľ. kolesa | A – Sedlová trubka | B – Uhol sedlovej trubky | C – Dĺžka hlavovej trubky | D – Uhol hlavovej trubky | E – Efektívna horná trubka | G – Zníženie stredu | H – Dĺžka zadnej stavby | I – Offset vidlice | J – Chodník | K – Rázvor | L – Výška rámu | M – Dosah rámu | N – Zásobník rámu | Min. výška sedla (krátky stožiar) | Max. výška sedla (krátky stožiar) | Min. výška sedla (vysoký stožiar) | Max. výška sedla (vysoký stožiar) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 700c | 40.4 | 73.8° | 10.0 | 71.6° | 51.7 | 7.2 | 41.0 | 5.0 | 6.1 | 97.1 | 70.4 | 37.0 | 50.7 | 54.9 | 61.2 | 59.2 | 65.4 |
| S | 700c | 44.0 | 73.8° | 12.1 | 72.2° | 53.2 | 7.2 | 41.0 | 4.5 | 6.2 | 97.6 | 73.4 | 37.8 | 53.0 | 58.5 | 64.8 | 62.8 | 69.0 |
| M | 700c | 47.6 | 73.6° | 13.6 | 72.9° | 54.5 | 7.0 | 41.0 | 4.5 | 5.8 | 98.1 | 76.2 | 38.4 | 54.6 | 62.1 | 68.4 | 66.4 | 72.6 |
| ML | 700c | 51.2 | 73.4° | 15.0 | 73.5° | 55.7 | 7.0 | 41.0 | 4.0 | 5.9 | 98.0 | 79.0 | 38.9 | 56.2 | 65.7 | 72.0 | 70.0 | 76.2 |
| L | 700c | 54.8 | 73.4° | 17.2 | 73.8° | 56.8 | 6.8 | 41.1 | 4.0 | 5.7 | 99.0 | 82.0 | 39.4 | 58.2 | 69.3 | 75.6 | 73.6 | 79.8 |
| XL | 700c | 60.9 | 73.4° | 20.1 | 73.9° | 58.4 | 6.8 | 41.2 | 4.0 | 5.7 | 100.7 | 86.3 | 40.2 | 61.0 | 75.4 | 81.7 | 79.7 | 85.9 |
13 499 €
10 974,80 € excl. VAT
