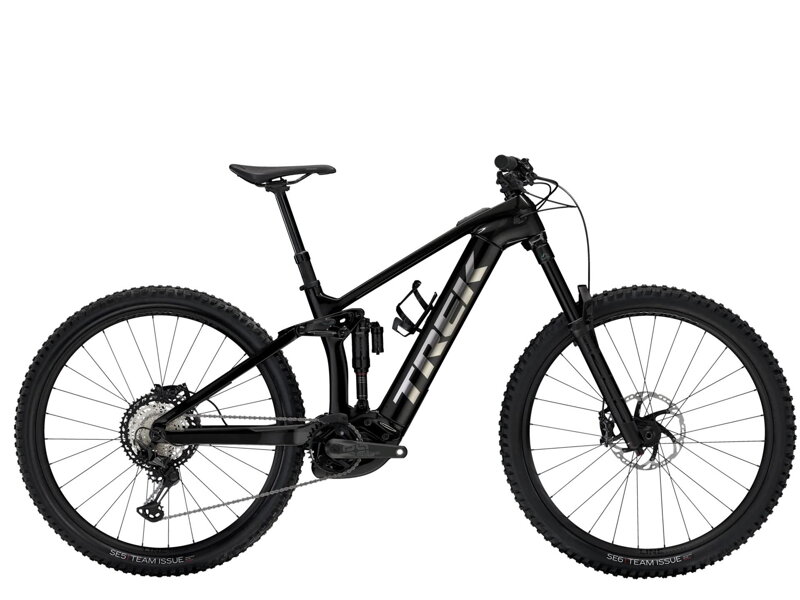

The Rail 9.8 is a carbon mountain e-bike that rides as hard as our wildest trails and then easily takes you back up the hill.
Everything, including the frame, is refined for maximum fun on the roughest rides. You also get the latest technology from Bosch with the intelligent Performance Line CX system, which has a 750Wh battery with longer range and great features that will take you to the next level, such as activity tracking, navigation and Bluetooth connectivity.
The new system controller is positioned almost perfectly for a sleek look, and the mini remote is discreet and intuitive.
It's right for you if...
You're looking for a carbon mountain e-bike for long rides, with high-performance parts and a strong battery. You want the responsive response of carbon, the stability of longer range, the soft feel of premium suspension, and the latest from Bosch.
The Tech You Get
An upgraded OCLV Carbon mountain bike frame with a longer reach and a larger head and seat tube for maximum durability. A 750Wh battery with extra long reach, a super responsive RockShox ZEB Select+ fork, a RockShox Super Deluxe Ultimate Thru Shaft shock, and a Shimano XTR 1x12 drivetrain. With the Performance Line CX smart system, you get the latest technology from Bosch, including a new mini remote and a Bluetooth® controller display integrated into the top tube.
The final word
This bike is packed with innovations that make it a real hit – especially the suspension system. With a powerful Bosch motor, 750Wh battery and components that can keep up with a wild ride, it's built to tackle steep descents and then get back up the hill.
- The Carbon Rail Gen 4 has the same enduro-inspired geometry and huge battery as the previous generation, but now has a pocket in the top tube, making the Gen 4 compatible with Bosch's integrated system controller and mini remote.
- The on-board computer displays the current assist level and battery charge status. It's neatly integrated into the top tube for maximum protection and a sleek look.
- Bosch's Smart system with the new, discreet Mini Remote delivers proven performance and excellent responsiveness. The controller is absolutely simple and contains only the controls you need to have within reach to switch between assist levels or activate walk mode.
- The intelligent eMTB and eMTB Lite modes automatically adjust assist based on input to give you the right amount of power for your ride.
- The new frame is extremely stiff. It features a 34.9mm seat tube, which allows you to mount a more robust dropper post, as well as a larger head tube suitable for durable forks optimized for mountain e-bikes. The result is greater stability and more precise steering.
Additional information
| Category: | MTB |
| Odpruženie: | Celoodpružený |
| Určenie: | Unisex |
| Veľkosť: | L |
| Veľkosť kolies: | 29" |
Need Help?
| Špecifikácia bicykla | |
|---|---|
| Rám | Karbonový OCLV rám, 1,8" hlavová rúrka, RIB, Knock Block 2.0, Mino Link, ABP, Boost148, zdvih 150 mm |
| Vidlica | RockShox ZEB Select+, DebonAir, Charger 3 RC2, Boost110, 160 mm |
| Tlmič | RockShox Super Deluxe Select+ RT, 230 x 57,5 mm |
| Max. zdvih vidlice | 170 mm (580 mm od osi ku korunke) |
| Predné koleso | Bontrager Line Comp 30, TLR, 29", Boost110, 6 skrutiek |
| Zadné koleso | Bontrager Line Comp 30, TLR, Rapid Drive 108, 29", Boost148 |
| Zadná oska | Bontrager Switch, odnímateľná páčka |
| Plášte | SE5 a SE6 Team Issue TLR, 29 × 2,50", Core Strength, aramid, 120 tpi |
| Ráfikový pás / Tmel | Bontrager TLR pás a 6 oz tmel |
| Max. veľkosť plášťa | Rám: 29 x 2,60", Vidlica: podľa výrobcu |
| Batéria | S: Bosch PowerTube 625 Wh / M–XL: Bosch PowerTube 750 Wh, smart systém |
| Nabíjačka | Bosch 4 A, 230 V |
| Ovládač | Bosch BRC3100, smart systém |
| Motor | Bosch Performance Line CX, 85 Nm, magnéziové telo |
| Radiaca páčka | Shimano XT M8100, 12-rýchlostná |
| Zadná prehadzovačka | Shimano XT M8100, dlhá klietka |
| Kľuka | E*thirteen E*spec Plus, 165 mm |
| Krúžok reťaze | E*thirteen E*spec, 34T, zliatina, reťazová línia 55 mm |
| Kazeta | Shimano XT M8100, 10-51, 12-rýchlostná |
| Reťaz | Shimano XT M8100, 12-rýchlostná |
| Pedále | VP-536, nylonová platforma |
| Max. veľkosť prevodníka | 1x: 34T |
| Sedlo | Bontrager Arvada, austenitické lyžiny, 138 mm |
| Sedlovka | S: 100 mm / M: 150 mm / L: 170 mm / XL: 200 mm – Bontrager Line Elite Dropper, MaxFlow, 34,9 mm |
| Riadidlá | Bontrager Line Pro, OCLV Carbon, 35 mm, 780 mm, 27,5 mm zdvih |
| Gripy | Bontrager XR Trail Elite, nylonové, uzamykacie |
| Predstavec | Bontrager Line Pro, 35 mm, Blendr kompatibilný, 0°, 45 mm |
| Brzdy | Shimano XT M8120, 4-piestové hydraulické |
| Brzdový kotúč | Shimano RT76, 203 mm, 6 skrutiek |
| Max. veľkosť brzdového rotora | Rám: 200 mm, Vidlica: podľa výrobcu |
| Hmotnosť | M – 23,68 kg / 52,21 lbs |
| Hmotnostný limit | Maximálna systémová hmotnosť bicykla (bicykel + jazdec + náklad): 136 kg |
| Veľkosť | Kolesá | A – Sedlová trubka | B – Uhol rúrky sedadla | Efektívny uhol sedadla | C – Dĺžka hlavovej trubky | D – Uhol pri hlave | E – Horná trubka | F – Výška stred. zloženia | G – Zníženie stred. zlož. | H – Zadná vidlica | I – Offset | J – Chodník | K – Rázvor | L – Rám | M – Dosah | N – Stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S (Horné) | 29" | 41.0 | 71.2° | 77.1° | 10.5 | 64.6° | 57.9 | 34.6 | 2.7 | 44.7 | 4.3 | 13.0 | 121.3 | 76.1 | 43.6 | 62.5 |
| S (Spodné) | 29" | 41.0 | 70.8° | 76.7° | 10.5 | 64.2° | 58.0 | 34.1 | 3.3 | 44.8 | 4.3 | 13.3 | 121.4 | 75.6 | 43.2 | 62.8 |
| M (Horné) | 29" | 42.0 | 71.2° | 77.1° | 11.0 | 64.6° | 60.0 | 34.6 | 2.7 | 44.7 | 4.3 | 13.0 | 123.6 | 77.3 | 45.6 | 62.9 |
| M (Spodné) | 29" | 42.0 | 70.8° | 76.7° | 11.0 | 64.2° | 60.1 | 34.1 | 3.3 | 44.8 | 4.3 | 13.3 | 123.6 | 76.8 | 45.2 | 63.3 |
| L (Horné) | 29" | 45.0 | 71.2° | 77.1° | 12.5 | 64.6° | 63.8 | 34.6 | 2.7 | 44.7 | 4.3 | 13.0 | 127.7 | 77.0 | 49.1 | 64.3 |
| L (Spodné) | 29" | 45.0 | 70.8° | 76.7° | 12.5 | 64.2° | 63.9 | 34.1 | 3.3 | 44.8 | 4.3 | 13.3 | 127.8 | 76.5 | 48.7 | 64.6 |
