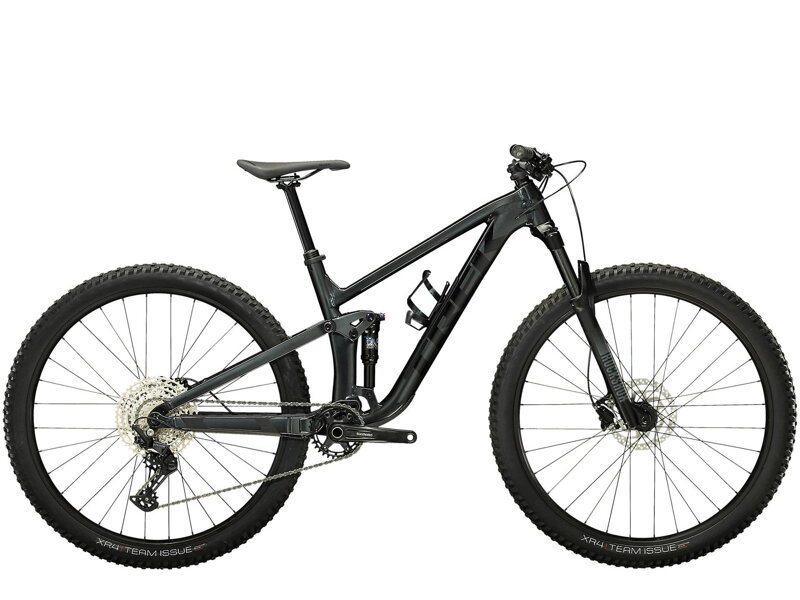

Trek Top Fuel 5 DEORE bike gray

Top Fuel 5 is a full-suspension mountain bike that's as efficient as it is powerful. It can handle rough and tough descents and rocket up hills and flat sections.

The lightweight and strong alloy frame is made with parts selected with both performance and value in mind, making this bike a perfect first full-suspension trail bike.

This full-suspension mountain bike is designed to handle demanding trail riding with confidence, comfort and excellent performance.

With a durable and lightweight Alpha Platinum Aluminum frame with internal storage and modern geometry, it offers the ideal combination of stiffness and comfort. The frame is equipped with technologies such as Mino Link for adjustable geometry, ABP (Active Braking Pivot) for smooth suspension even when braking, Knock Block 2.0 against frame damage, and internal cable routing, which reduces wear and improves the aesthetics of the bike.

The frame travel is 120 mm, which puts it in the category of trail machines with sufficient reserve for technical descents.

Front suspension fork RockShox Recon Silver RL with 120 mm of travel, Solo Air technology and Motion Control damper guarantees smooth operation and precise shock absorption. The fork lockout and 15 mm thru axle together with Boost110 standard ensure stability and control in every situation. The X-Fusion Pro 2 rear shock with two positions (open/locked) is dimensioned 185 x 50 mm, which complements the overall trail character of the bike.

The wheels are mounted on reliable Bontrager hubs with solid axles (Boost110 at the front, Boost148 at the rear), a removable lever and Alex MD35 rims with an internal width of 35 mm. These are ready for tubeless tires, which are basically delivered in the Bontrager XT3 Elite and Bontrager XR4 Team Issue versions, with 29 × 2.40" dimensions and Inner Strength technology for increased sidewall protection. Thanks to the TLR (Tubeless Ready) system, Bontrager sealant and valves, tubeless conversion is simple and effective. The frame supports tires up to 29 × 2.50".

The drivetrain is built on reliable 12-speed components Shimano Deore M6100 with a wide cassette range of 10–51 teeth, which offers the perfect gear range for both climbing and descending. Depending on the frame size, the Shimano M512 crankset is used with a 30-tooth chainring and a length of 170 mm or 175 mm. The Shimano Deore M6100 chain guarantees quiet and precise operation. The entire system is tuned for maximum efficiency and durability in the field.

The components are selected with an emphasis on performance and comfort. A 138mm wide Bontrager Arvada saddle with steel rails provides comfort on long rides. The TranzX dropper post is available with varying travel lengths to suit frame sizes (100mm to 170mm) and is internally routed for a clean look. The 750mm wide Bontrager Rhythm Comp handlebars and 50mm stem offer perfect handling. Bontrager XR Trail Comp grips with nylon locking ensure a firm and comfortable grip.

The brake system consists of Shimano MT200 hydraulic disc brakes with Shimano RT26 discs with diameters of 180 mm at the front and 160 mm at the rear. The maximum frame compatibility is up to 180 mm, which provides sufficient braking power for all trail situations.

The weight of the bike in size M is 15.29 kg (33.71 lb), which is very favorable considering the full-suspension design and robust equipment. The maximum system weight (bike + rider + cargo) is set at 136 kg, which ensures high reliability and durability.

This bike is ideal for riders looking for a versatile and well-equipped trail machine with modern geometry, quality suspension, a powerful drivetrain and the ability to adjust according to preferences. Whether you're riding technical single trails, climbing, or speeding down, this model is ready to handle anything you throw at it.
